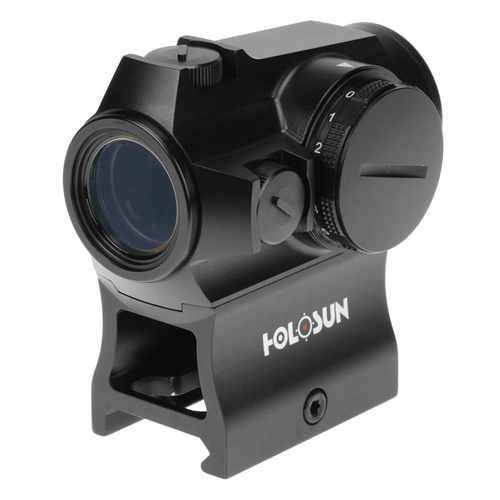

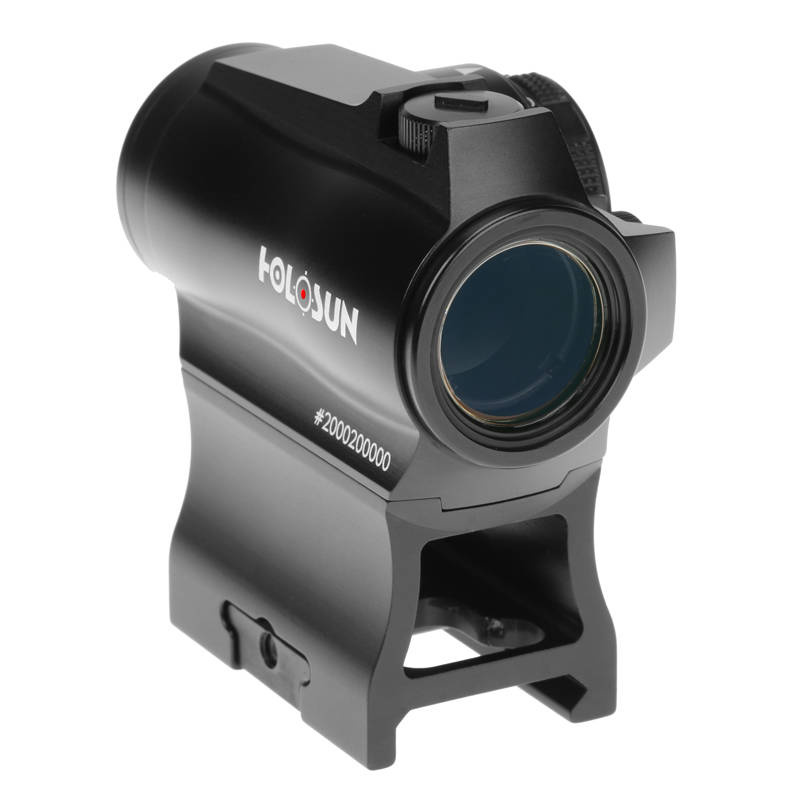

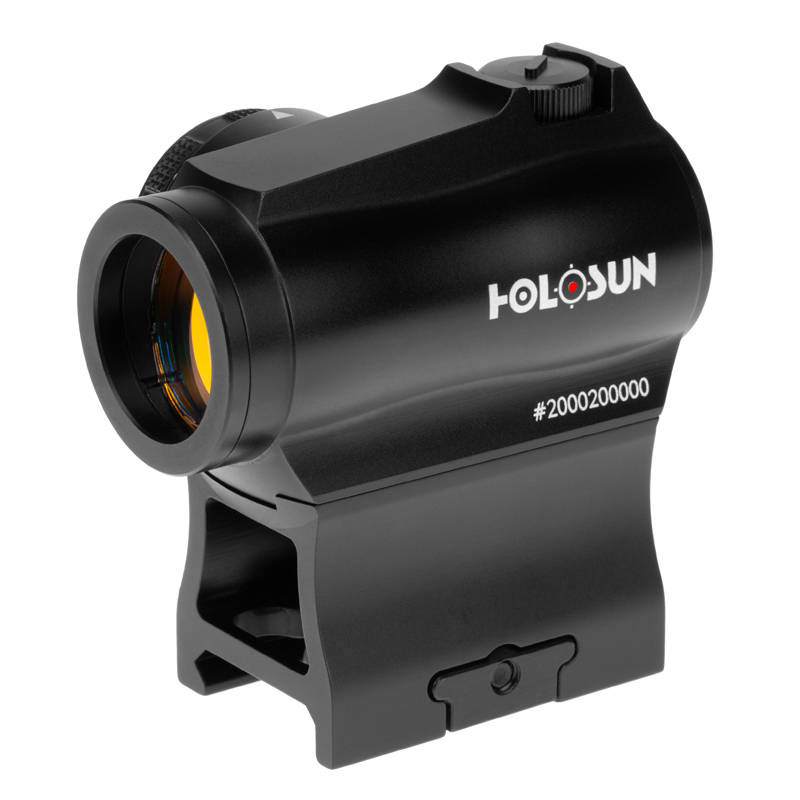

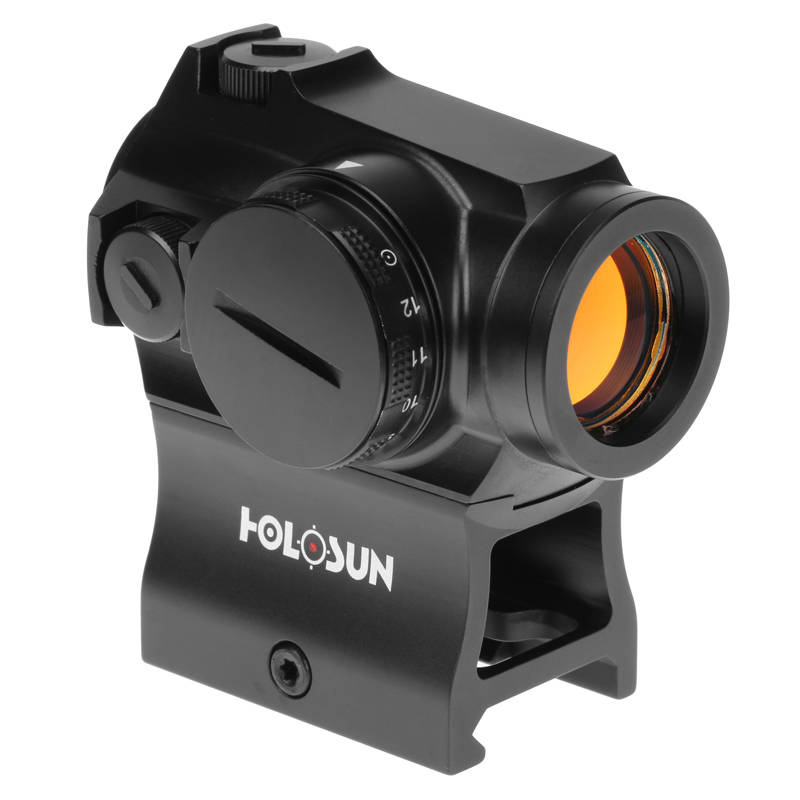

Holosun - HE503R-GD Gold Dot Sight - Low mount & 1/3 Co-witness Mount
Description

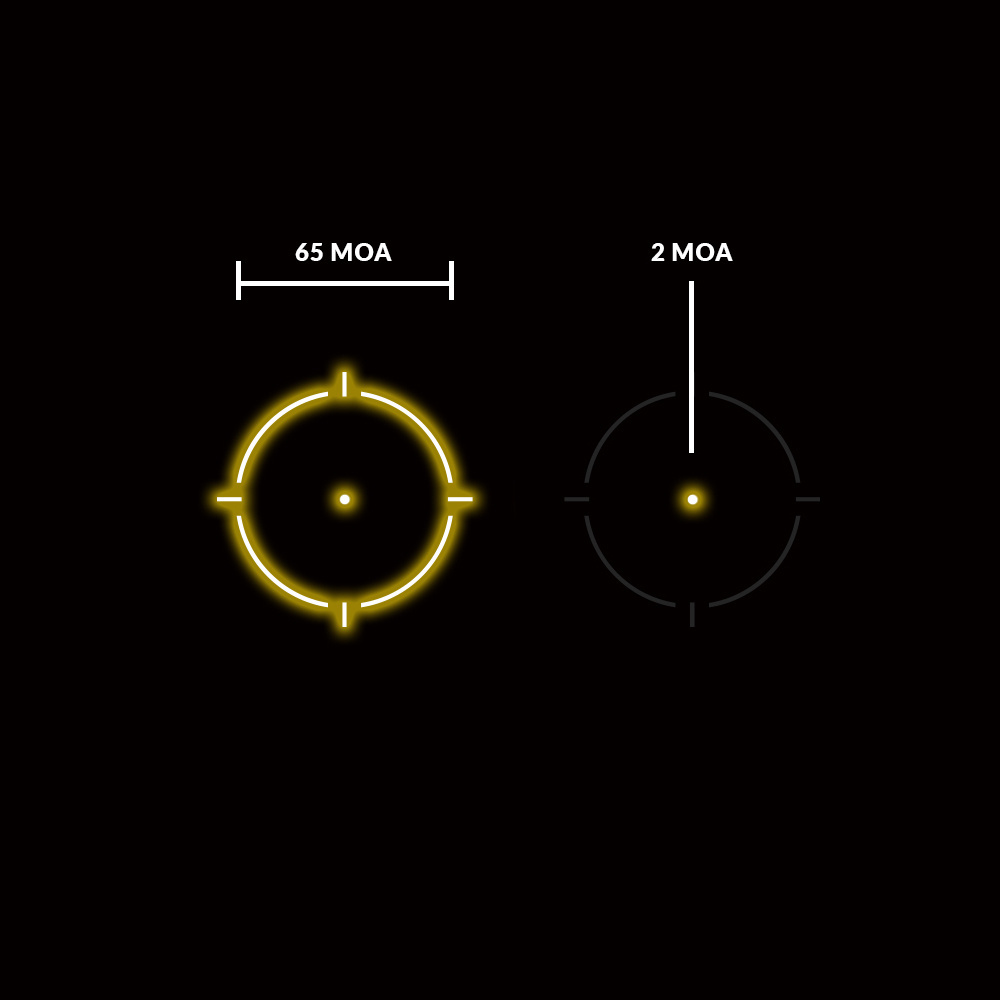

The HE503R-GD gold dot sight has a gold-colored sight and the ability to choose one of two types of aiming point - a 2 MOA dot with a 65 MOA circle, and a 2 MOA dot only.
The device is powered by a CR2032 battery, which enables operation up to 50,000 hours. On the side of the red dot there is a knob that allows you to select one of the 12 brightness levels of the aiming point - 10 modes for daytime operation, 2 for operation with night vision devices.
The durable housing of the device is made of T6061-T6 aluminum and additionally sealed, which ensures protection against water and dust in accordance with the IP67 standard.
Included with assembly: low and high 1/3 Co-Witness.
Features:- Parallax-free optical system with unlimited distance from the eye
- Flowing design with very little restriction to the field of view
- Advanced LED technology with low power consumption, providing up to 50,000 hours of operation on a single CR2032 battery
- Durable lenses with advanced multi-layer coatings for full spectrum light transmission and high clarity
- CNC machined durable, shock-resistant T6061-T6 aluminum construction
- Waterproof housing that meets IP67 standard
- Two mounts included: 1/3 Co-Witness (mounted) and low mount
- Fits Picatinny or Weaver rails
- Battery compartment located under the brightness level adjustment knob

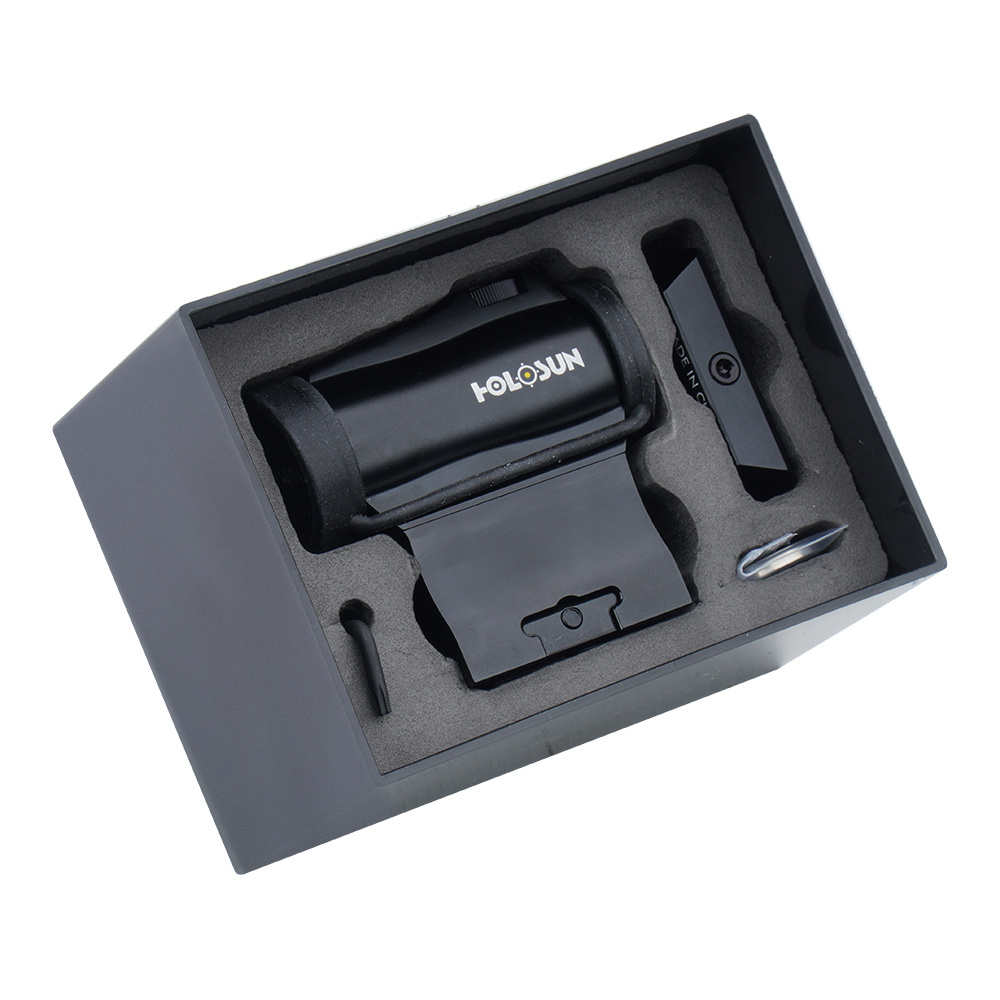

- Everything is packed in an aesthetic and durable plastic box
The lens in my red dot sight is skewed, should it be like that?
Yes, in the case of enclosed red dot sights with the emitter at 4 o'clock, the lens must be tilted to properly reflect light towards the user's eyes.
| Technical data | |
|---|---|
| Objective lens diameter | 20mm |
| Aiming point | Dot 2 MOA Dot 2 MOA in a circle of 65 MOA |
| Backlight source | LED |
| Eye distance | unlimited |
| Adjust | 1/2 MOA / one click |
| Parallax | none |
| Coatings | multi-layer |
| Zoom | x 1 |
| Power | CR2032 battery |
| Battery life | 50,000 h (6th level backlight) |
| Brightness control | 10 steps + 2 steps for night vision |
| Housing | Aluminum T6061-T6 |
| Housing color | Black |
| Regulating turrets | Covered with nuts |
| Mounting rail | Picatinny / Weaver |
| Waterproof design | IP67 / td> |
| Operating temperature range | -30°C to 60°C |
| Storage temperature range | -40°C to 70°C |
| Shock resistance | up to 1000 G |
| Dimensions | 71 x 36 x 69 mm (with 1/3 Co-witness assembly) |
| Weight | 169 g (with 1/3 Co-witness assembly) |

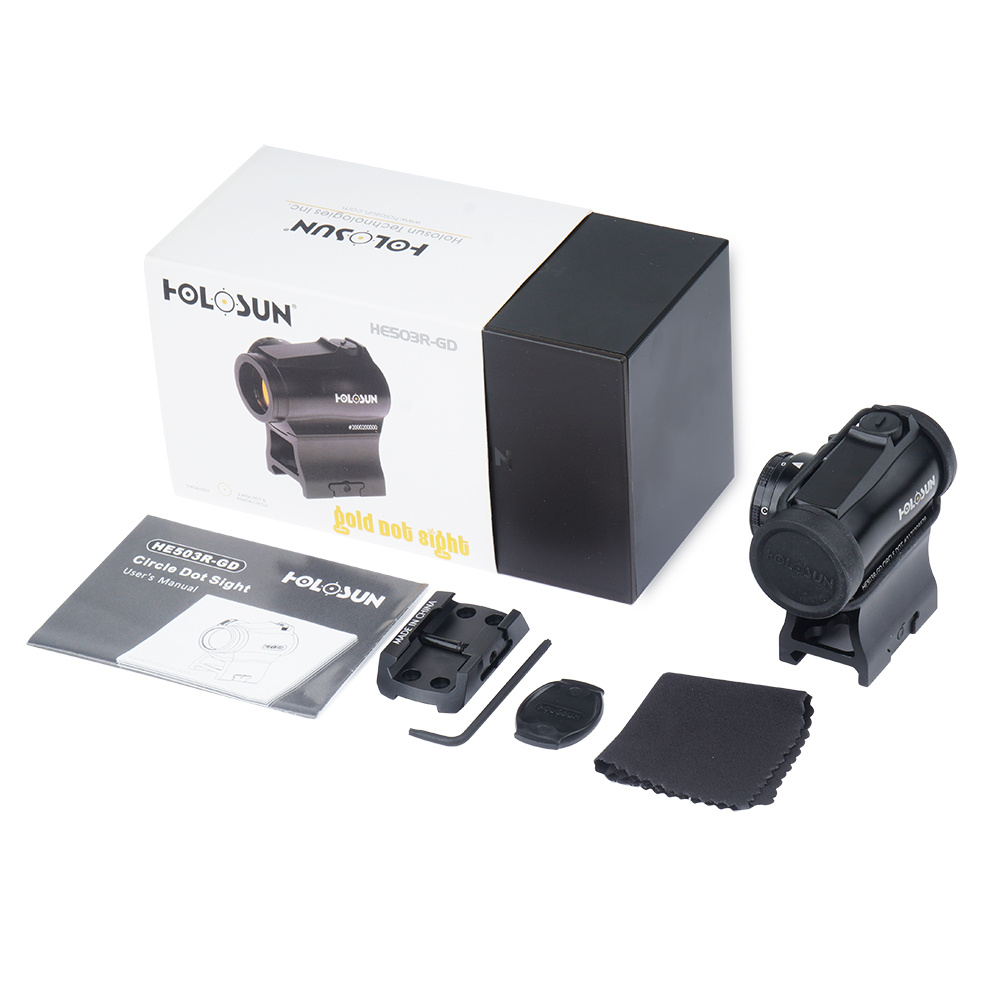

Included:
- HE503R-GD gold dot sight with 1/3 Co-Witness
- CR2032 battery
- Low mount
- Rubber lens covers
- Settings key
- Torx key
- Microfiber cloth
